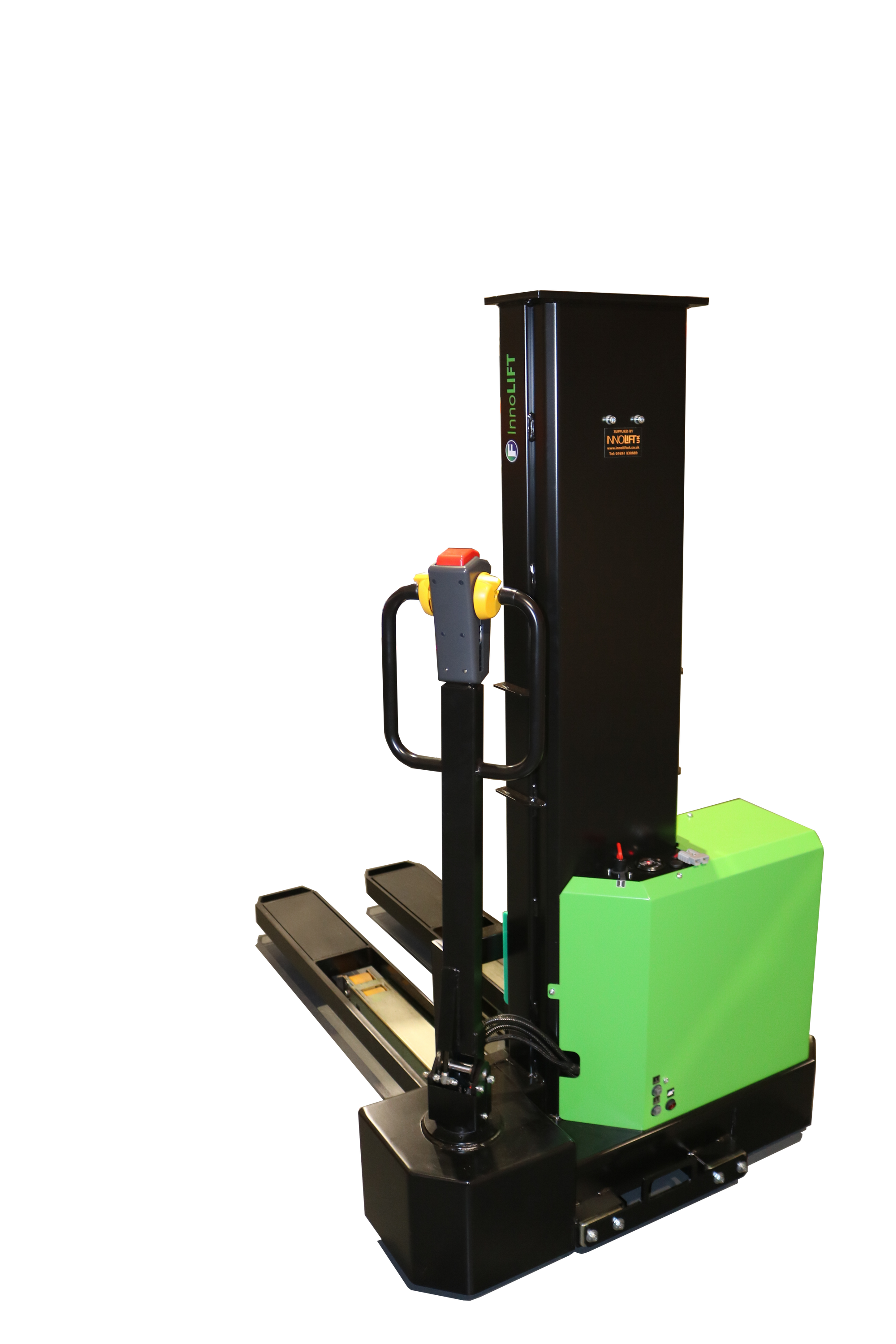

Innolift EL1000.1000 Self-Propelled
The machines come with the following items:
Battery (21035) 12V 44Ah
Charger (21382) 24V/15A
In Vehicle Charger (For charging on the move)
Adjustable Rear Plate for the vehicle
All Innolift self loaders meet all current CE-Safety standards
Technical Data
EL1000.1000 Power Electric Capacity kg ( lb ) 1000 ( 2200 lb ) Load centre mm ( inch ) 600 ( 23,62'' ) Lifting height mm h3 ( inch ) 1000 ( 39,37'' ) Loading height mm h2 ( inch ) 900 ( 35,43'' ) Own weight kg ( lb ) 350 ( 770 lb ) Overall lowered height mm h1 ( inch ) 1470 ( 57,87'' ) Overall extended height mm h4 ( inch ) 2390 ( 94,1'' ) Total length mm L ( inch ) 1595 ( 62,8'' ) Length without forks mm L2 ( inch ) 390 ( 15,35'' ) Chassis width mm B ( inch ) 1000 ( 39,37'' ) Wheel base mm y ( inch ) 980 ( 38,58'' ) Fork length mm L1 ( inch ) 1200 ( 47,24'' ) Fork width mm b ( inch ) 540 ( 21,26'' ) Parking brake Electric Lifting motor kW 0.8 Driving motor kW 0.65 Color, Chassis / Cover Black / Green Battery capacity V / Ah 24 / 38 Charger V / A 24 / 10
